Specifications for

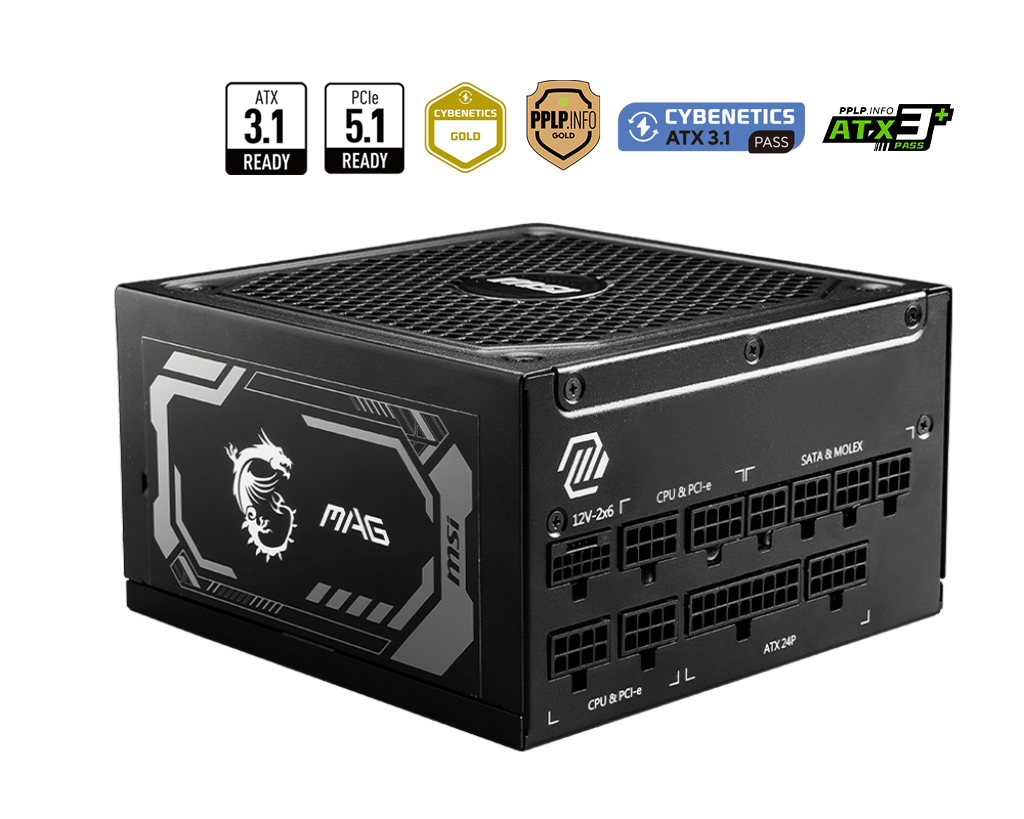

MAG A1250GL PCIE5
Modular
Modular
Yes (fully modular)
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
Power Excursion
Power Excursion
2500W (*up to 200% of the PSU's rated power for 100μs)
Power Watt
Power Watt
1250W
Input Voltage
Input Voltage
100-240V~
Input Frequency
Input Frequency
50-60Hz
ATX (24 pin)
ATX (24 pin)
1
Efficiency Rating
Efficiency Rating
80 PLUS Gold (up to 90%)
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
1 (600W)
EPS (4+4 pin)
EPS (4+4 pin)
2
Fan Size
Fan Size
135 mm
PCI-E (6+2 pin)
PCI-E (6+2 pin)
4
Dimensions (DxWxH)
Dimensions (DxWxH)
150 x 150 x 86 mm
SATA (15 pin)
SATA (15 pin)
12
PFC Type
PFC Type
Active PFC
MOLEX (4 pin)
MOLEX (4 pin)
4
Protection
Protection
OCP / OVP / OPP / OTP / SCP / UVP
FDD (4 pin)
FDD (4 pin)
1
