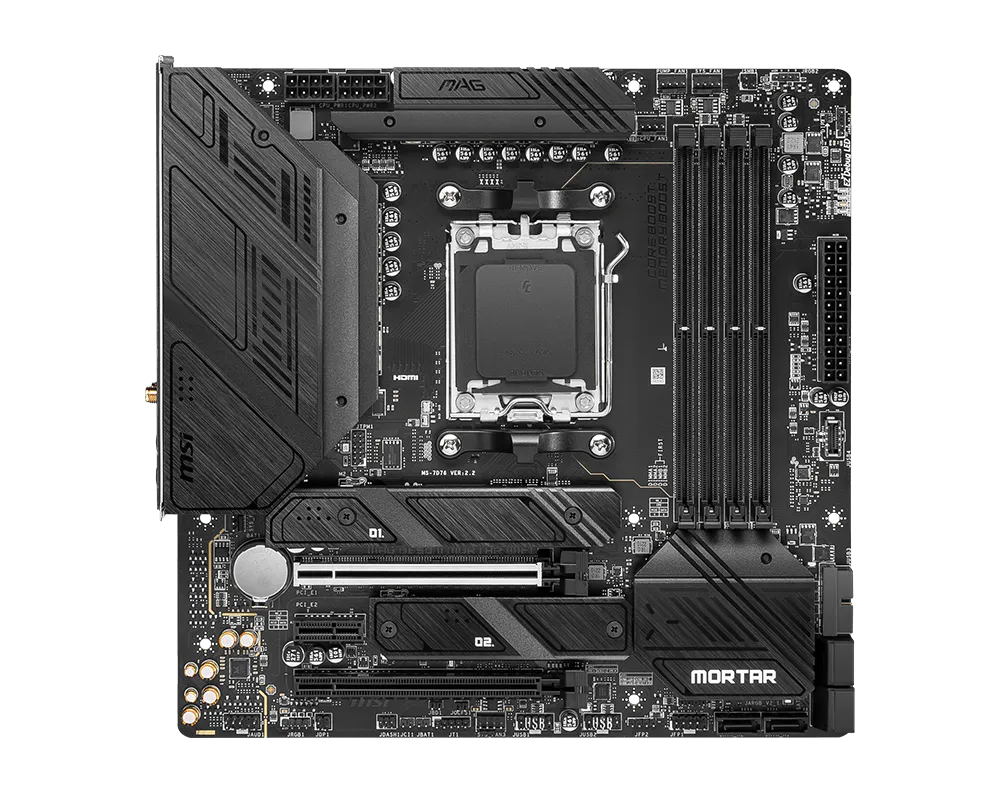

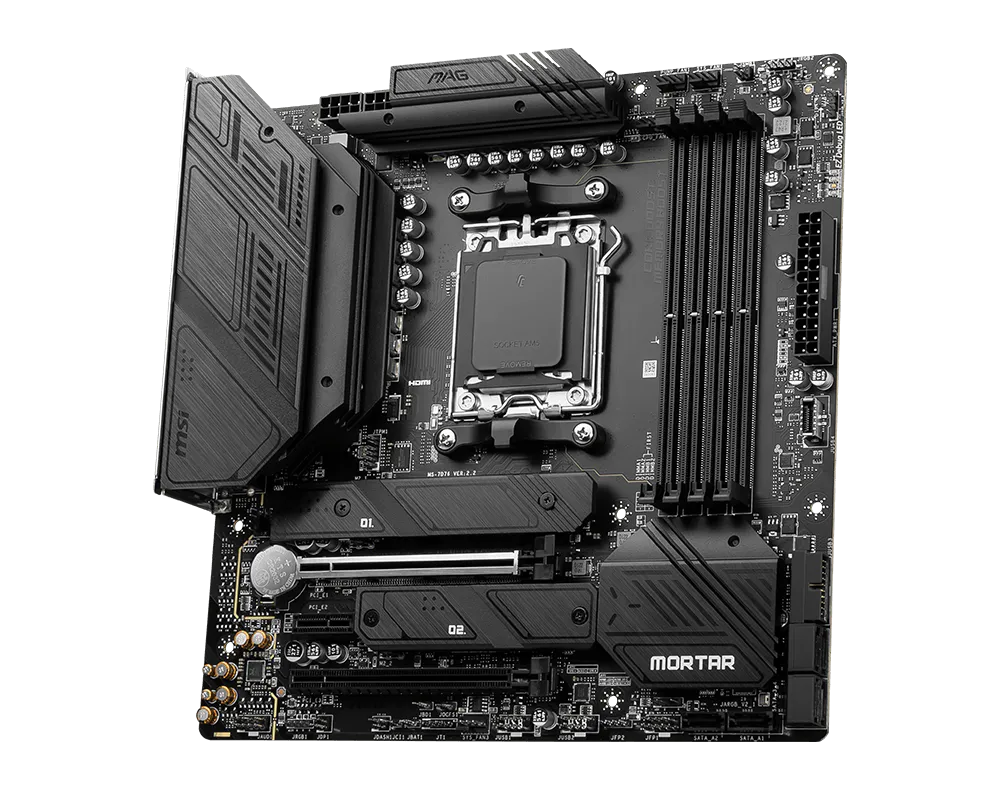

MAG B650M MORTAR WIFI
MAG B650M MORTAR WIFI

AWARDS

MSI MEG Case with MIS Products

unite as one

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

EXCLUSIVE FEATURE
THERMAL SOLUTION
CONNECTIVITY

EXCLUSIVE FEATURE

Core Bost Technology

Core Boost Technology

6 Layer PCB 2oz Thickened Copper

6 Layer PCB with 2oz Thickened Copper

Digital PWM

Digital PWM

Steel Armor

Steel Armor

PREMIUM THERMAL SOLUTION

Extended Heatsink

Extended Heatsink

M.2 Shield Frozr

M.2 Shield Frozr

Pump Fan Support

Pump Fan Support

Heatsink with 7W/mK Thermal Pad

Heatsink with 7W/mK Thermal Pad

HIGH-SPEED TRANSMISSION

2.5G Network Solution

2.5G Network Solution

Wi-Fi 6E

Wi-Fi 6E

Memory Boost

Memory Boost

Lightning Gen 4

Lightning Gen 4

HARDWARE

Hardware
  • cooling
  • Power Solution
  • Diy Friendly
  • Fully Fan Control
  • cooling overview
  • Water Cooling

Fully Fan Control

CONTROL IN ONE CLICK
FROZR AI COOLING
AUTO DETECT YOUR FAN

เมนบอร์ด MSI ให้คุณจัดการความเร็วและอุณหภูมิสำหรับพัดลมระบบและพัดลม CPU ทั้งหมดใน BIOS และซอฟต์แวร์ด้วยอินเทอร์เฟซกราฟิกแบบง่าย คุณยังสามารถตั้งค่าเป้าหมายอุณหภูมิได้มากถึง 4 เป้าหมาย ซึ่งจะปรับความเร็วพัดลมโดยอัตโนมัติ

msi fully control software

ตรวจจับอุณหภูมิ CPU และ GPU และปรับความเร็วพัดลมระบบให้เป็นค่าที่เหมาะสมโดยอัตโนมัติโดยใช้ MSI AI Engine

msi ai cooling feature

หัวต่อพัดลม MSI ตรวจจับพัดลมที่ทำงานในโหมด DC หรือ PWM โดยอัตโนมัติเพื่อการปรับแต่งความเร็วพัดลมและความเงียบให้เหมาะสม Hysteresis ยังช่วยให้พัดลมของคุณหมุนขึ้นอย่างราบรื่น เพื่อให้แน่ใจว่าระบบของคุณจะเงียบเสมอ ไม่ว่าจะเกิดอะไรขึ้น

msi auto detect your fan

Cooling Overview

MAG B650M MORTAR WIFI
  1. Extended Heatsink

    Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.

  2. M.2 Shield Frozr

    Keeps M.2 SSDs safe while preventing throttling, making them run faster.

  3. Heavy Plated VRM Heatsink

    The VRM heatsink covers the upper MOS and helps dissipate the heat.

  4. 7W/mK Thermal Pad & Additional
    Choke Pad

    High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

OPTIMIZED FOR WATER COOLING

ออกแบบมาเพื่อรองรับระบบระบายความร้อนด้วยน้ำ All-In-One และแบบกำหนดเองที่ได้รับความนิยมมากที่สุดในตลาด หัวต่อ PIN ปั๊มน้ำเฉพาะรองรับได้สูงสุด 3 แอมป์ ทำให้คุณควบคุมความเร็วของปั๊มน้ำได้อย่างเต็มที่ 'เขตหวงห้าม' ที่ทำเครื่องหมายไว้อย่างชัดเจน ช่วยให้ติดตั้งได้ง่ายและปลอดภัย และพอดีอย่างสมบูรณ์แบบ

msi x670 system cooling none atx
— ทดสอบแล้วว่าสามารถให้ทำงานได้ดีที่สุดกับ —
msi x670 system cooling none atx support branding icons
  • STRUCTURE
  • PCB DESIGN
  • EZ OC TUNING

12+2+1 DUET rAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.

12PHASE
CORE POWER SPS / 80A
2PHASE
SOC
POWER
1PHASE
MISC
POWER

DIGITALL POWER DESIGN

A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

DOUBLE POWER CONNECTORS

Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.

CORE BOOST

Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

OPTIMIZED PCB SOLUTION
  • 6 PCB layers
  • 2oz Thickened Copper

EZ OC TUNING

PERFORMANCE SWITCH
PBO THERMAL POINT
CONFIG TDP

Performance Switch เป็นการรวมประโยชน์ของ PBO (Precision Boost Overdrive) ที่เป็นค่าเริ่มต้นจาก AMD และการตั้งค่า OC ของ MSI เอง ให้ประสิทธิภาพของ CPU ที่สูงขึ้นทั้งในสถานะของ single-core และ multi-core สำหรับผู้ใช้ที่ต้องการประสิทธิภาพสูงสุด

msi fully control software

MSI PBO Thermal profile คือการตั้งโปรไฟล์ความร้อนของ MSI ที่มีการตั้งค่าอุณหภูมิ CPU สูงสุดที่ระดับ 85°C, 75°C และ 65°C ด้วยโปรไฟล์ระดับความร้อนเหล่านี้ จะทำให้ CPU ทำงานที่แรงดันไฟฟ้าและอุณหภูมิที่ต่ำกว่าแต่ยังคงประสิทธิภาพเท่าเดิม

msi ai cooling feature

Config TDP ได้รับการออกแบบมาเพื่อให้การตั้งค่าโหมด ECO (65W) หรือ TDP (PPT/TDC/EDC) ที่แตกต่างกันสำหรับผู้ใช้ขั้นสูง ด้วยการนำเสนอหลายโปรไฟล์สำหรับการตั้งค่า TDP ที่แตกต่างกันใน Click BIOS 5 ทำให้การกำหนดค่าโปรไฟล์ TDP ได้ง่ายขึ้น และไม่จำเป็นต้องแก้ไขการตั้งค่าด้วยตนเองสำหรับแต่ละ TDP

msi auto detect your fan
  • EZ M.2 CLIP
  • DRIVER UTILITY INSTALLER
  • FLASH BIOS BUTTON
  • MORE FOR DIY FRIENDLY

EZ M.2 CLIP

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

EZ M.2 CLIP EZ M.2 CLIP

MSI DRIVER UTILITY INSTALLER

Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. Learn more

*Please ensure to connect the internet, or the Driver Utility Installer won’t launch automatically.

MSI DRIVER UTILITY INSTALLER (DUI)

BOOT UP GUARANTEED

Run into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer multiple options to successfully boot your system again.

Flash BIOS Button of msi motherboard
Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required. Leam more

MORE FOR DIY FRIENDLY

WINDOWS 11 CERTIFIED
PRE-INSTALLED I/O SHIELD
XL CLIP
EZ DEBUG LED
keep out zone
WINDOWS 11 CERTIFIED
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
MSI MB
PRE-INSTALLED IO background

The design protect your IO ports and makes your installation process easier and safer.

The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

* Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.

PERFORMANCE

Performance
  • Expansion
  • memory
  • Bios & software
  • LIGHTNING GEN 4
  • STORAGE
  • USB

Lightning Gen 4 PCI-e with Steel Armor

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

MSI STEEL ARMOR
REINFORCED,
HEAVY SOLDERED CONNECTIONS

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

FAST AND FUTURE-READY STORAGE

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

2x

lightening gen 4 m2
64 Gbps

6x

6 Gbps
MAG B650M MORTAR WIFI storage overview
lightning usb 20G
FRONT USB TYPE-C

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G

Using USB 3.2 devices has never been faster! MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

USB FRONT TYPE-C

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

  • DDR5
  • EXPO

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B650M MORTAR WIFI is ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

LATEST DDR5 MEMORY WITH SMT SLOT
LATEST DDR5 MEMORY WITH SMT SLOT

โอเวอร์คล็อกได้ง่ายด้วยโปรไฟล์ EXPO

MSI ดำเนินการทดสอบหน่วยความจำอย่างละเอียดกับแบรนด์หน่วยความจำยอดนิยมภายใต้สภาวะที่รุนแรงเพื่อให้แน่ใจว่าระบบของคุณทำงานได้เสถียรไม่ว่าจะเกิดอะไรขึ้นก็ตาม เปิดใช้งานโปรไฟล์ EXPO ได้ง่ายด้วยการตั้งค่าพลังงานอัตโนมัติเพื่อให้ได้ความเร็วและความเสถียรของหน่วยความจำที่ดีที่สุด

  • CLICK BIOS 5
  • MSI CENTER
  • AIDA64
  • RESIZABLE BAR

CLICK BIOS 5

รับประโยชน์เพิ่มเติมจาก BIOS ที่กำหนดไว้ล่วงหน้าซึ่งออกแบบมาเพื่อให้ใช้งานง่าย, หรือจะปรับแต่งเมนบอร์ดเพื่อประสิทธิภาพการเล่นเกม เพิ่มประสิทธิผลในการทำงาน หรือโอเวอร์คล็อกเพื่อทำสถิติโลก!

EZ-mode
Advanced mode
  • EXPO(EXtended Profiles for Overclocking)

    เลือกจากโปรไฟล์ EXPO ที่ตั้งไว้ล่วงหน้าและโอเวอร์คล็อกหน่วยความจำ DDR ที่เข้ากันได้โดยอัตโนมัติ

  • Game Boost

    โอเวอร์คล็อก CPU ของคุณอย่างรวดเร็วด้วยปุ่มเดียวเพื่อประสิทธิภาพที่มากขึ้น

  • M-FLASH

    แฟลชหรืออัพเกรดไบออสได้อย่างสะดวกภายในไม่กี่นาทีจากยูทิลิตี้การตั้งค่า CMOS

  • HARDWARE MONITOR

    เข้าถึงข้อมูลฮาร์ดแวร์ที่สำคัญของคุณได้ทันทีแบบเรียลไทม์ รวมถึงอุณหภูมิ ความจุของหน่วยความจำ ความเร็วสัญญาณนาฬิกา และแรงดันไฟฟ้า

  • MEMORY TRY IT

    รับความเร็วสูงสุดจากหน่วยความจำระบบของคุณและรับประสิทธิภาพที่มากขึ้น

  • SEARCH & FAVORITES

    ตัวเลือกการค้นหาและตั้งเมนูโปรดแบบถาวรที่มุมขวาบน ซึ่งจะนำคุณไปยังเมนู BIOS ที่คุณกำหนดไว้อย่างรวดเร็ว

MSI CENTER

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Mystic Light
True Color
User Scenario
Hardware Monitoring
Profile Setting
Fan Center
System Diagnosis
Mystic Light
Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!
True Color
Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.
User Scenario
One click for setting your computer, even customize own profile as your preference.
Hardware Monitoring
Get immediate access to your critical hardware information in real-time.
Profile Setting
Tune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.
Fan Center
Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.
System Diagnosis
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.

Exclusive UI of AIDA64 Extreme

MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

RESIZABLE BAR

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

Connectivity

Connectivity
  • audio
  • mystic light
  • networking
  • Audio Boost 5

audio boost 5

  • โปรเซสเซอร์เสียง ALC4080 ประสิทธิภาพสูง
  • ตัวเก็บประจุคุณภาพสูง
  • แจ็คเสียงคุณภาพสูงพร้อม S/PDIF
  • แยกช่องสัญญาณเสียงซ้ายขวาบน PCB
  • การป้องกันการเกิดเสียงช็อตขณะต่อคอนเน็คเตอร์เสียง
Msi X670 Audio Boost with AMP
Msi Z790 high quality audio capacitors
Msi x670 audio high quality audio jacks
Msi x670 audio isolated audio signal
Msi x690 Audio Boost DE-POP
  • Synchronize

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

  • A-RAINBOW V2
  • RGB
  • AMBIENT LINK
Msi X670 motherboard with a-rainbow v2
Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.
*Gen2 device only supports 7 RGB themes
Msi X670 RGB
Supports 12V RGB devices.
Msi x670 rgbsync ambient device image
Synchronize lighting theme with compatible lighting devices.
  • 2.5G Lan & Wi-Fi 6E

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

msi lan 2.5g icon mai 6E wifi icon
msi b650m lan 2.5g wifi low-latency network with natenna
  • Wi-Fi 6E
  • Bluetooth 5.2
  • 2.5G LAN

MAG B650M MORTAR WIFI

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 7600+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
